Brand Name : ZR Hi-tech
Model Number : LT-PD-2S-070080
Place of Origin : CHINA
MOQ : 1
Payment Terms : D/A,D/P,T/T
Delivery Time : 4 weeks
Packaging Details : carton packing
7 to 8 GHz 2-Way Power Divider
Quick Detail:
· 2-Way Power Divider
· Stripline Design
· -40℃~+70℃ operating temperature
· 7 to 8 GHz Frequency Range
· Max Power 10 Watt
· Insertion Loss < 0.4 dB
· Isolation > 22 dB
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-PD-2S-070080 from ZR is a 2-way power divider that operates from 7 to 8 GHz and can handle up to 10 Watt (CW) with 0.4 dB max insertion loss and 22 dB min isolation,The package interface uses SMA-Female connectors and is REACH and RoHS compliant.More details for LT-PD-2S-070080 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
Items | Specification | Conditions |
Part Number | LT-PD-2S-070080 |
|
Frequency Range | 7 to 8 GHz |
|
Impedance | 50 Ohms |
|
Input VSWR | 1.2:1 Max. |
|
Output VSWR | 1.2:1 Max. |
|
Insertion Loss | 0.4 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
Isolation | 22 dB Min. |
|
Amplitude Balance | 0.4 dB Max. |
|
Phase Balance | 4 Degrees Max. |
|
Input Power | 10 kW |
|
Connectors | SMA-Female |
|
Dimension | 24x30x10 mm |
|
Note: for custom specs, please contact us directly. |

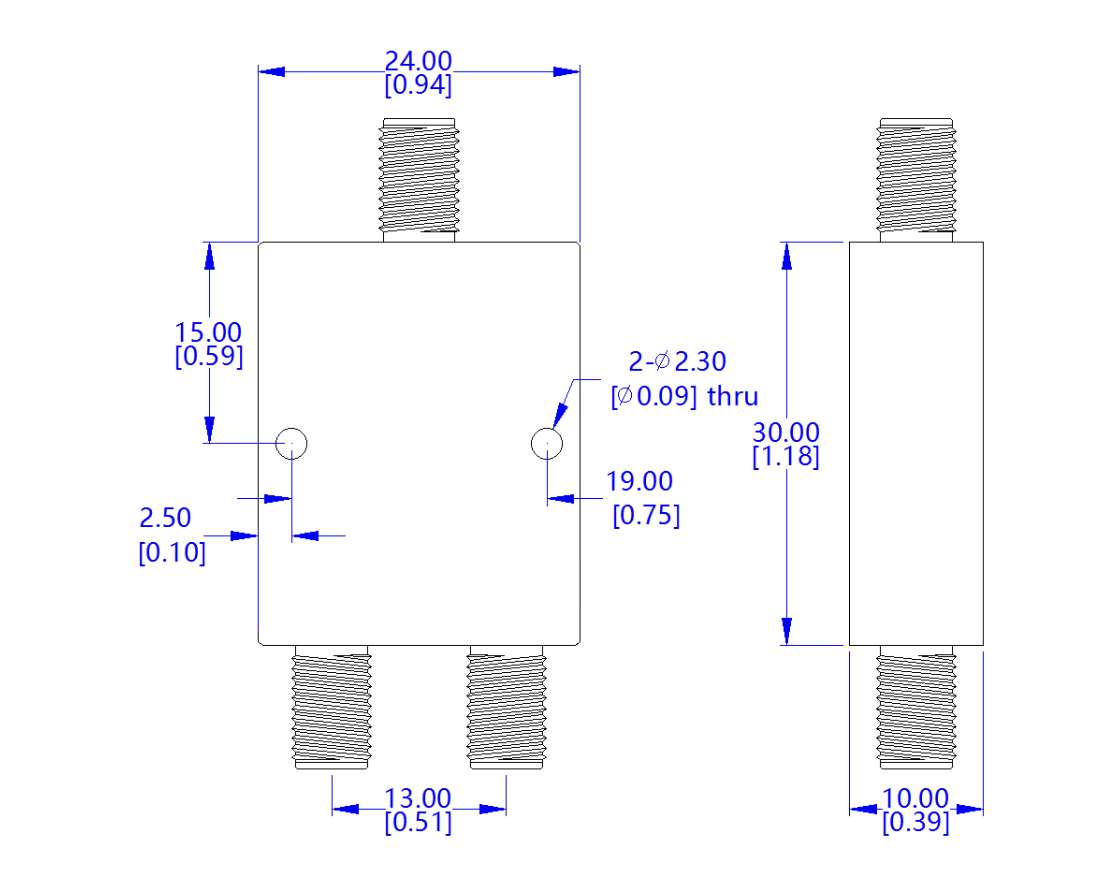

Outline Drawing (Unit: mm):
![]() |
